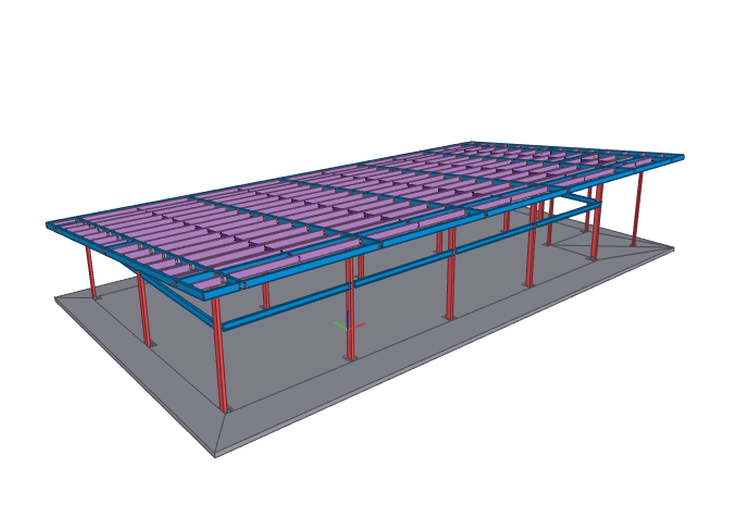

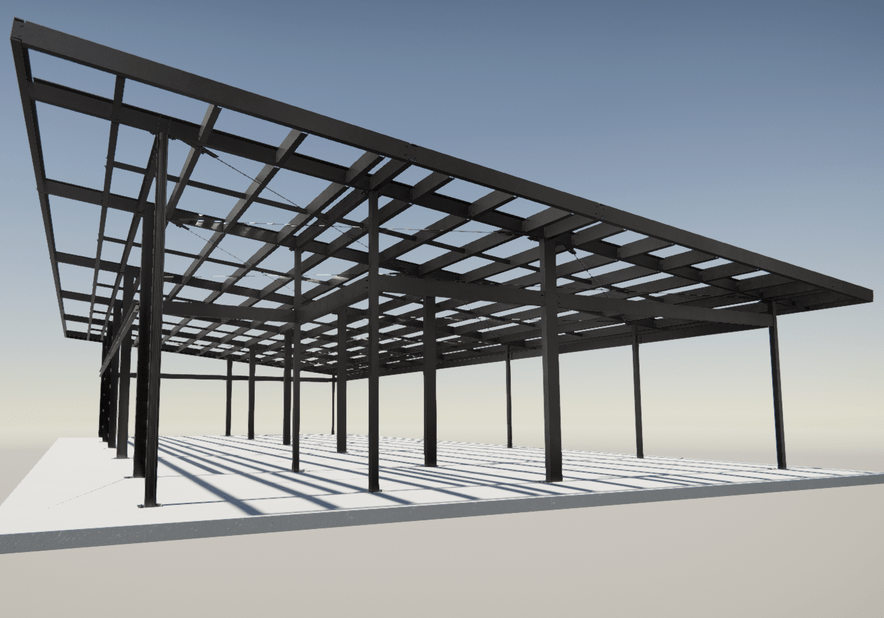

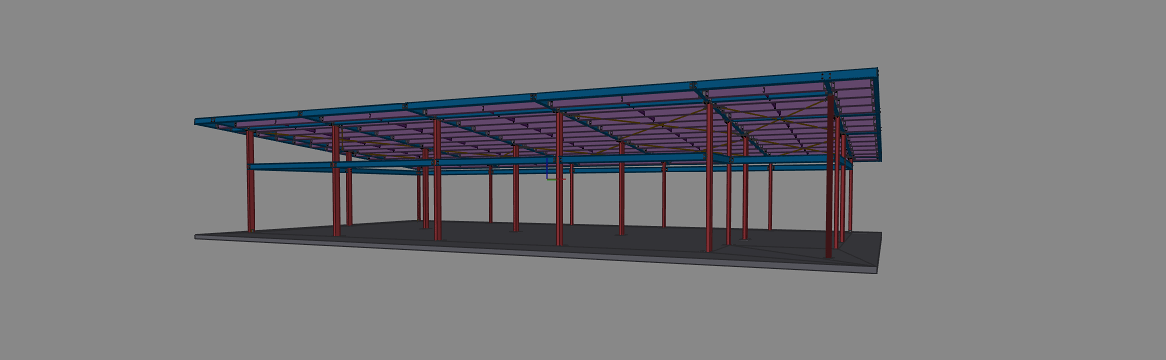

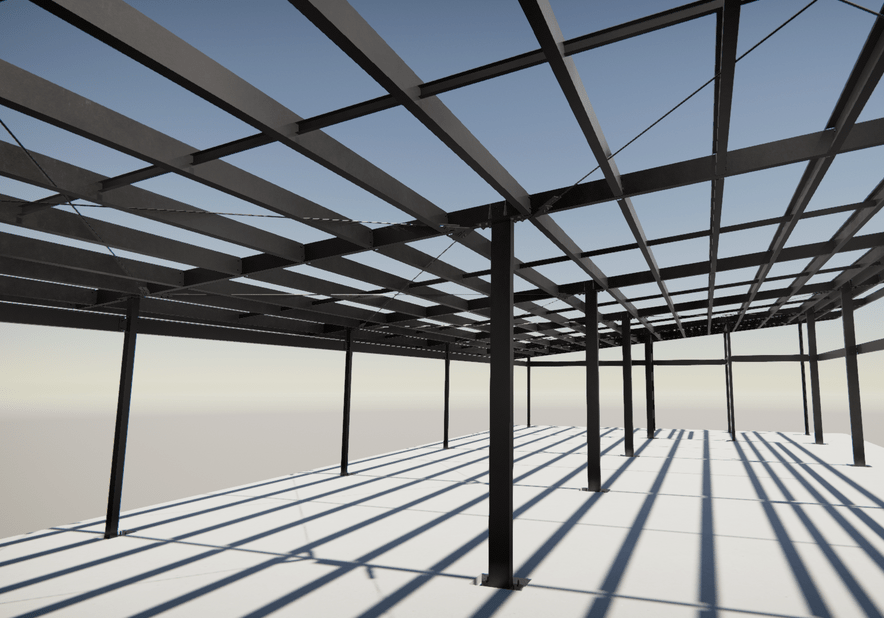

3D Model
New pavillion for Melton Secondary College
We love community projects and helping provide Melton SC with a new pavillion for their oval is no exception. Our drawings led to a seamless install and a new pavillion that will last a lifetime.
Scope of Works
- IFC Model

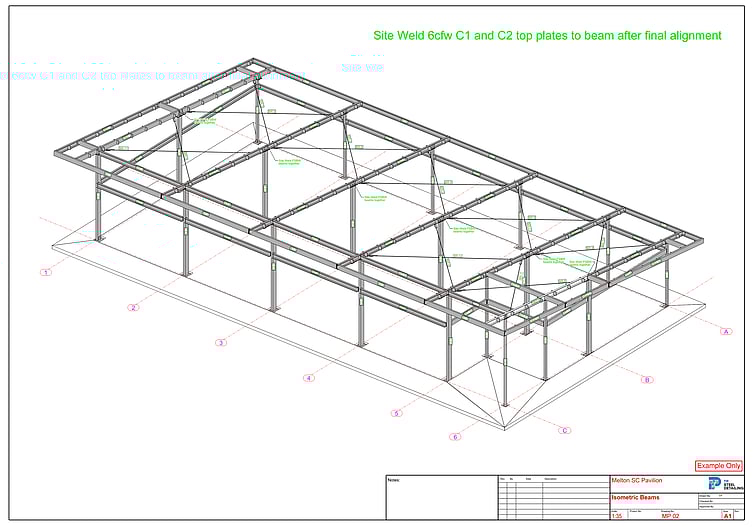

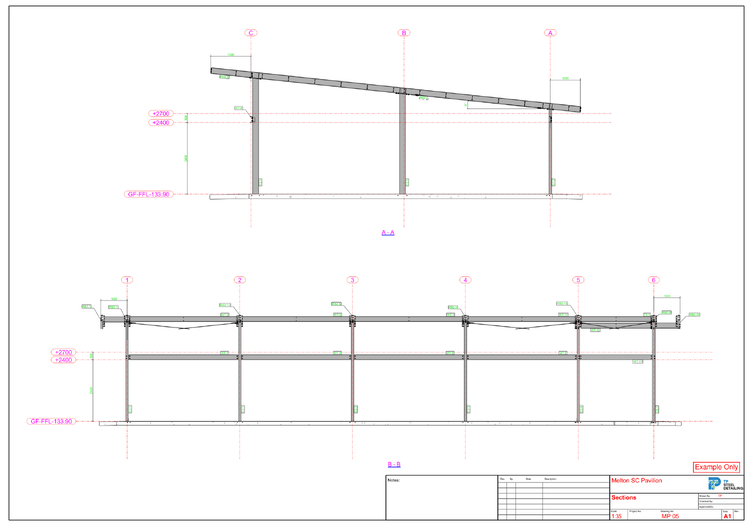

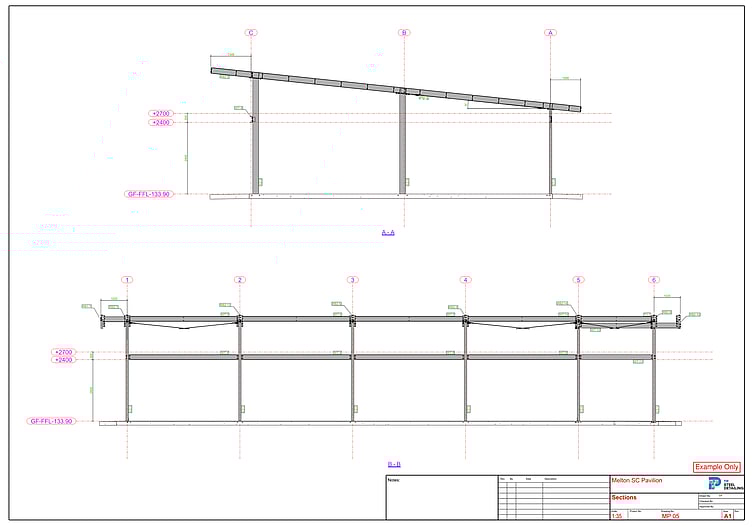

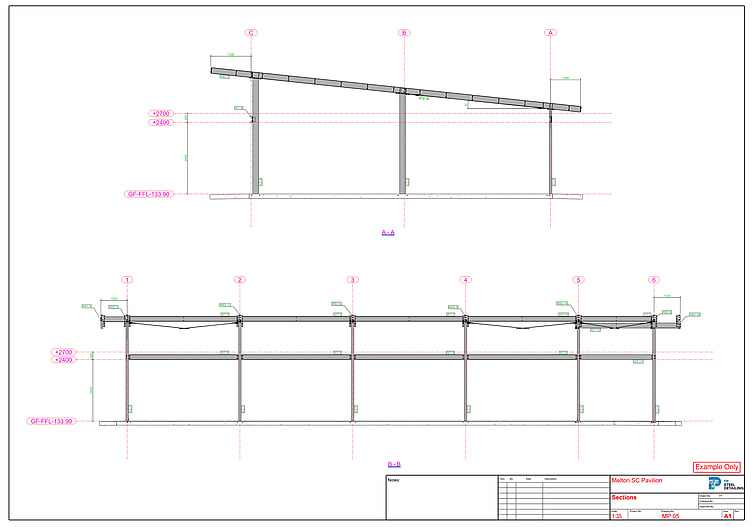

- Marking Plans, elevations and isometric

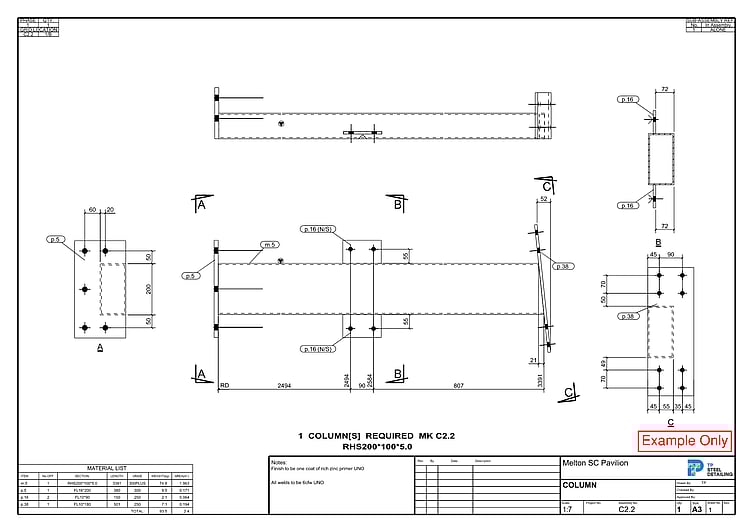

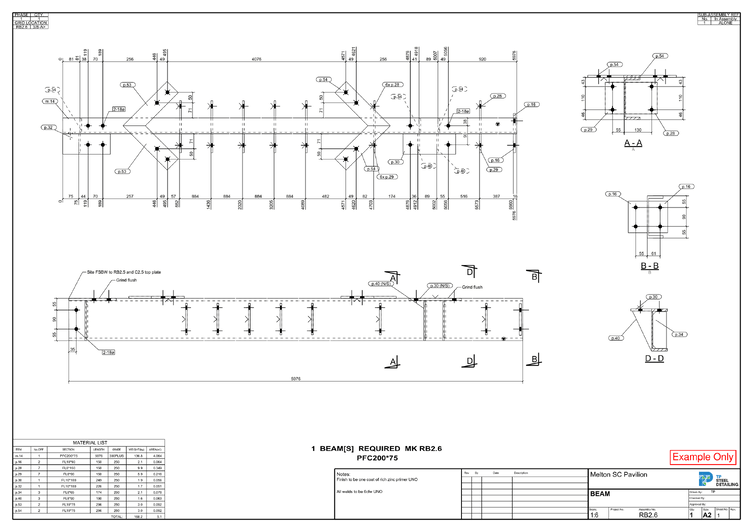

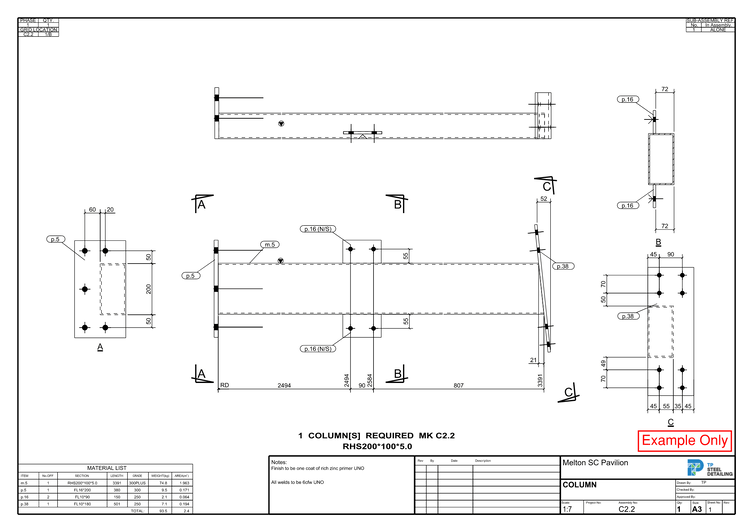

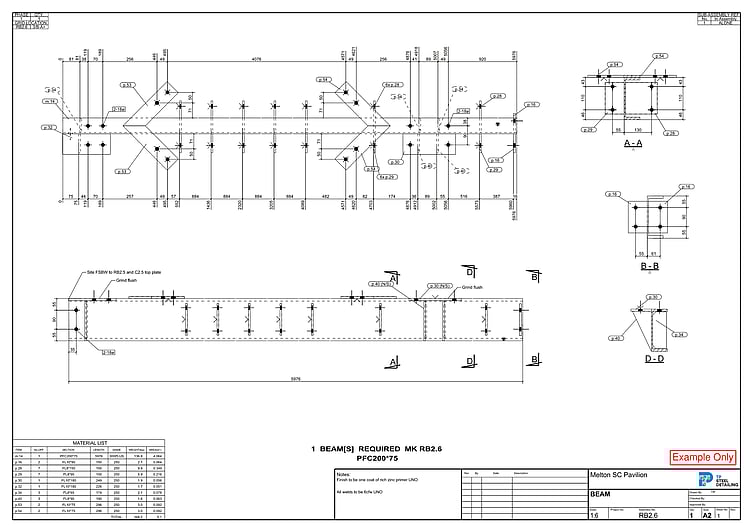

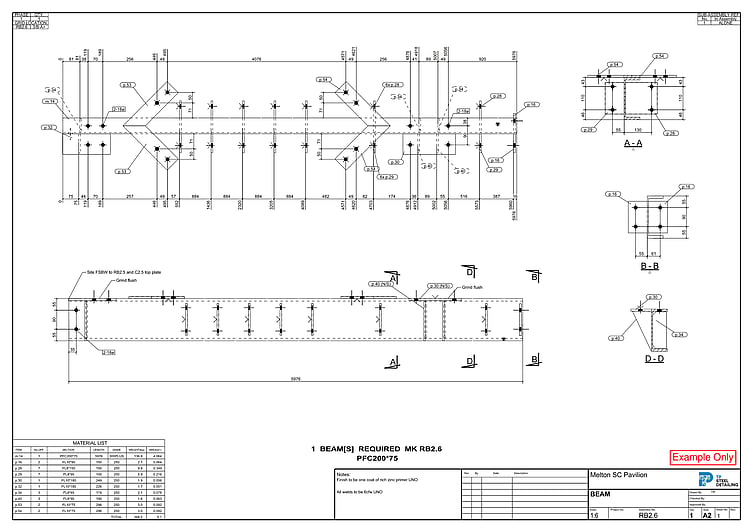

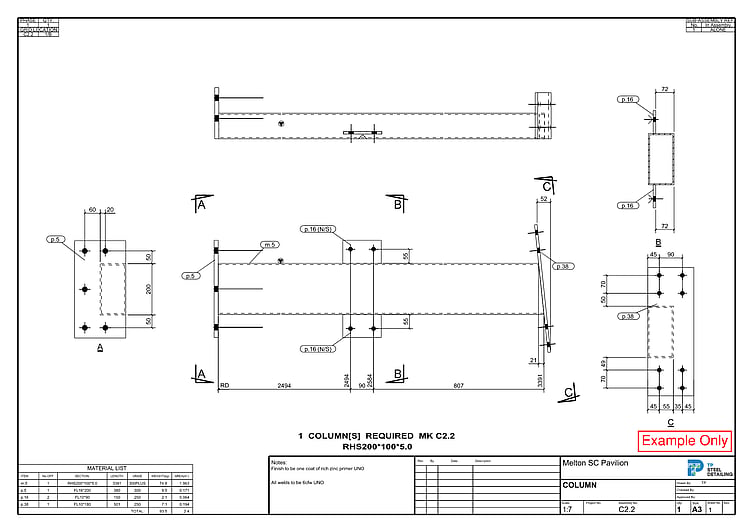

- Assembly (Fabrication) Drawings

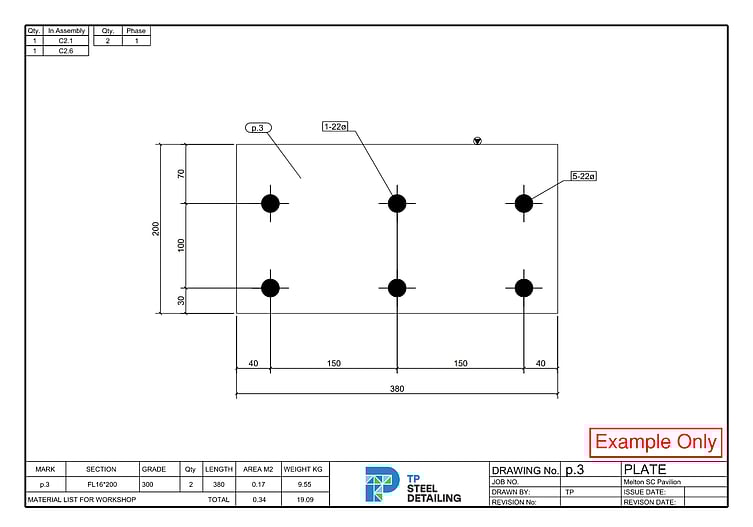

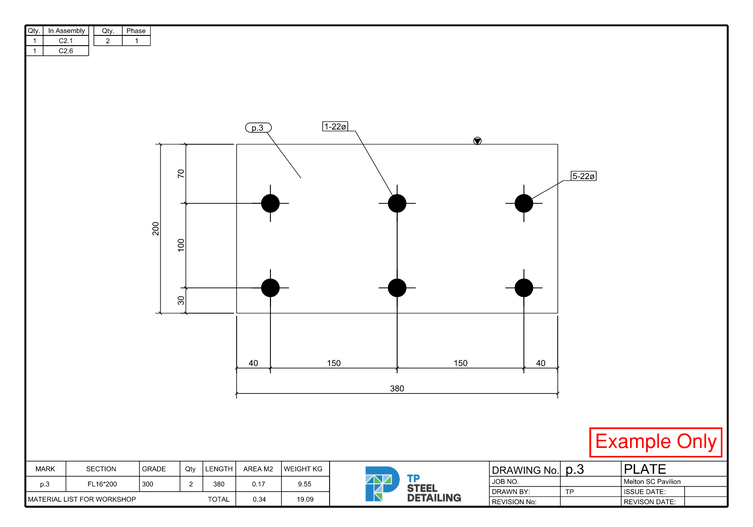

- Single Part Drawings (Shafts and Plates)

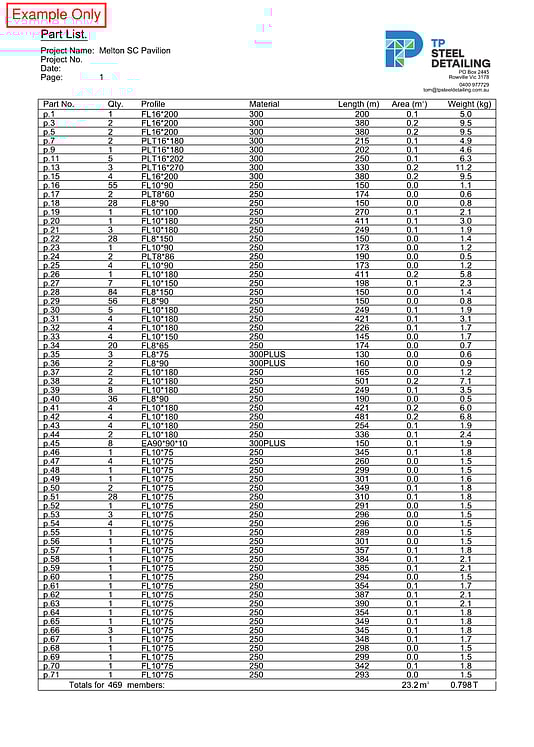

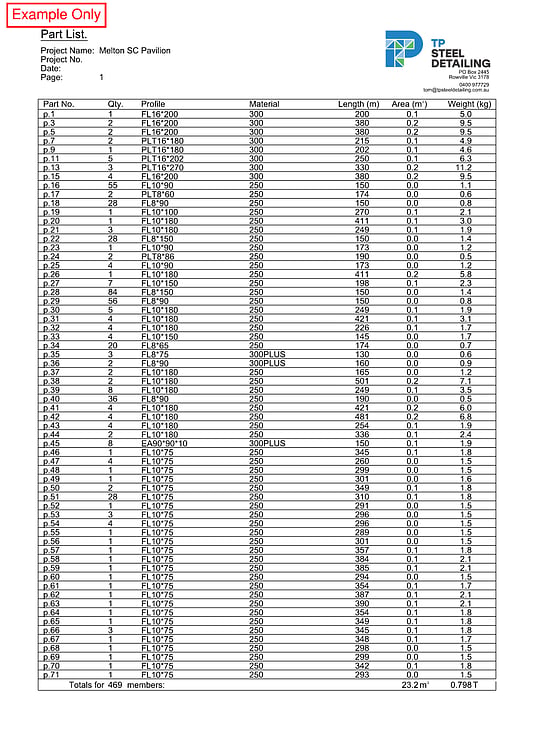

- Bolt List

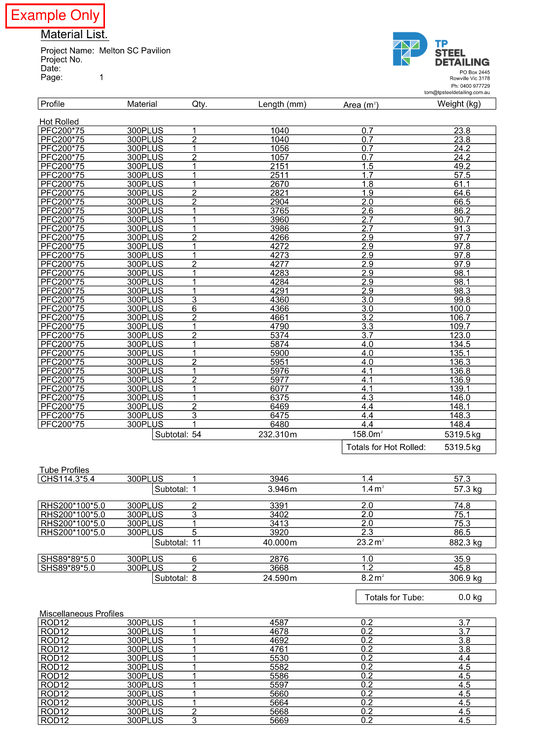

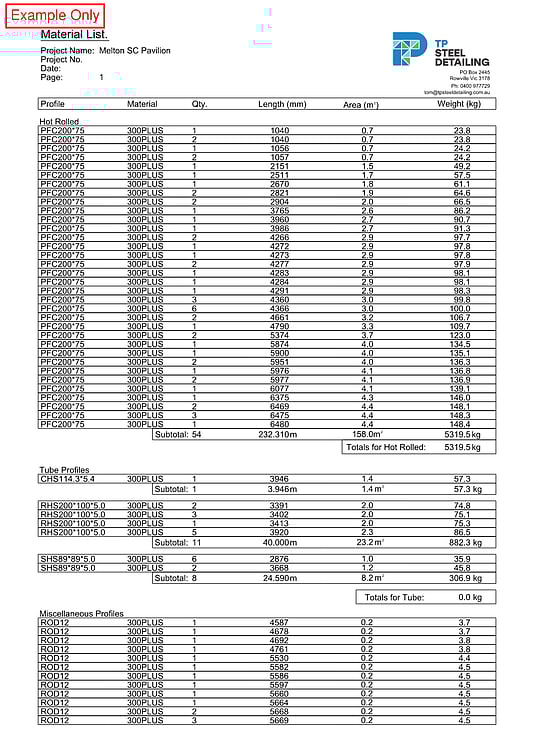

- Material Lists (for ordering)
- Site Measure
