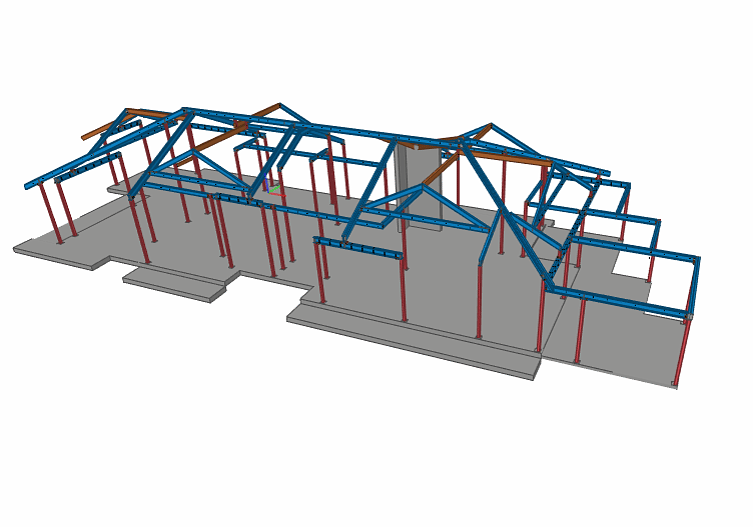

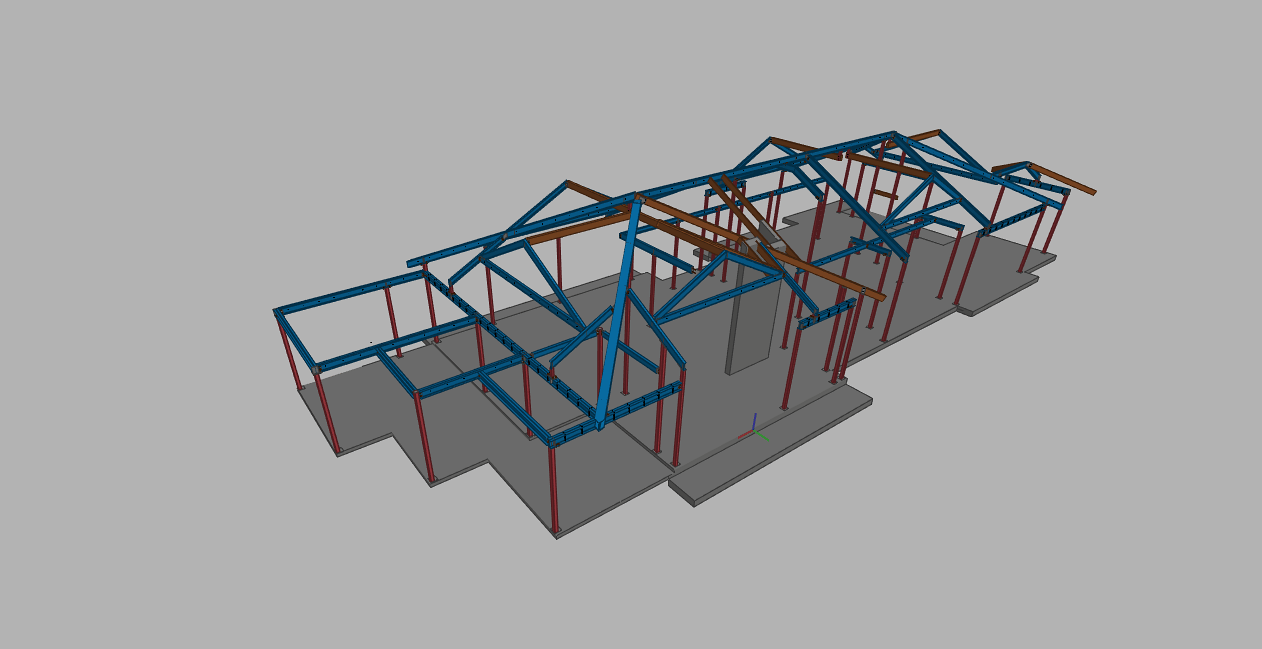

3D Model
Roof steel for double story house
A new home builf with lots of cranks, timber beams tying into steel, and cast-in plates.
Scope of Works
- IFC Model

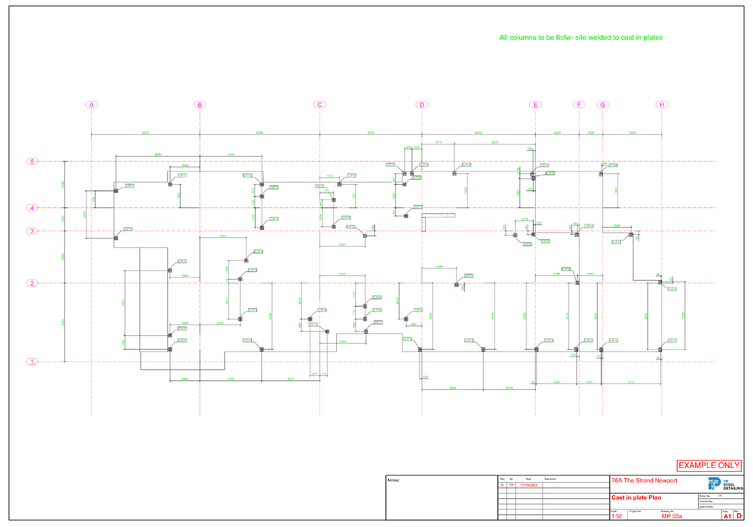

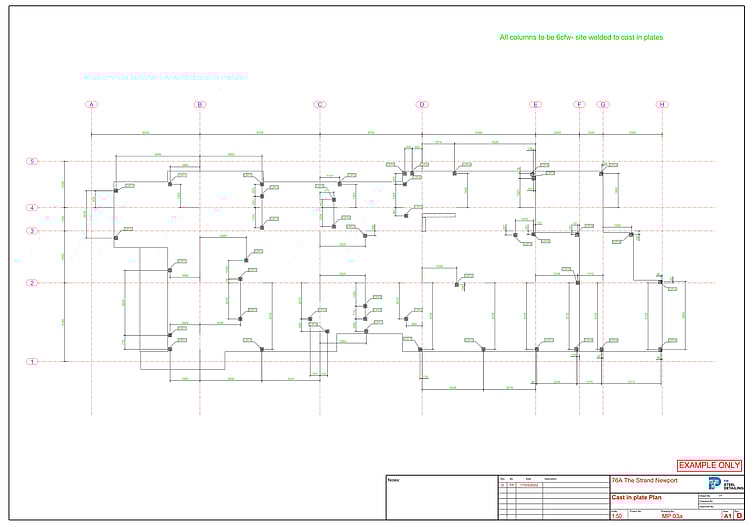

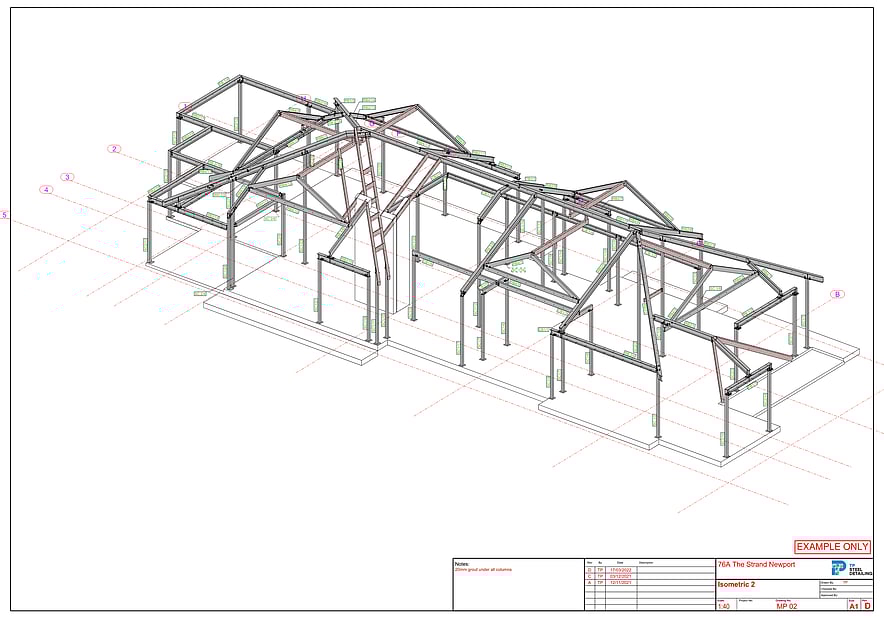

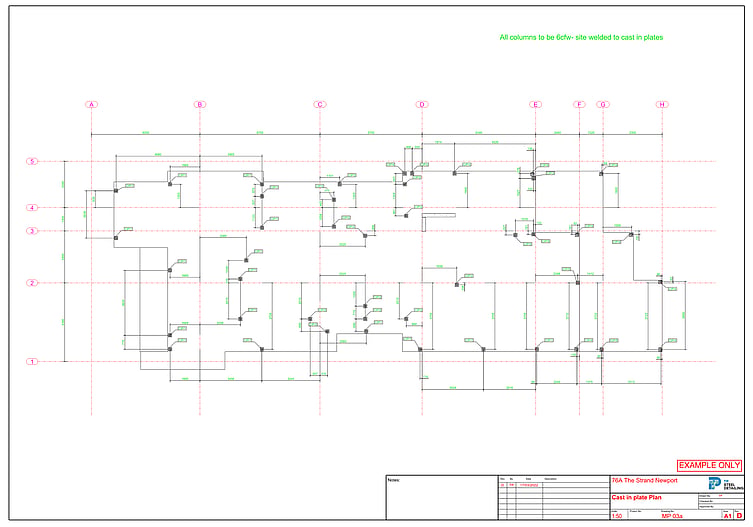

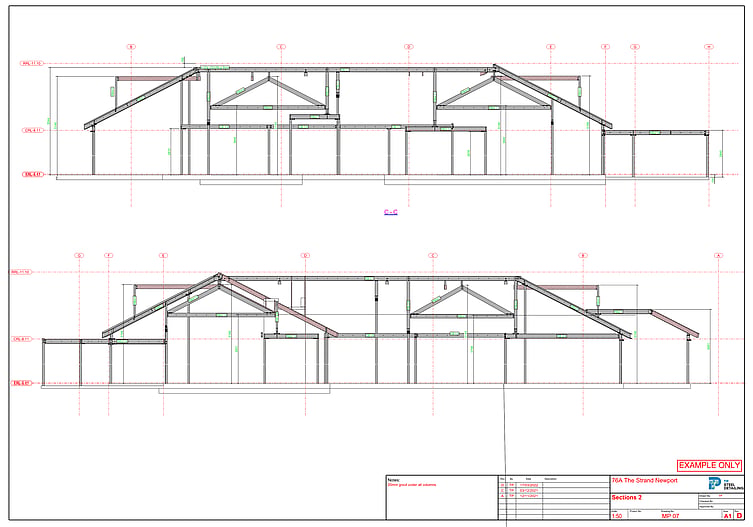

- Marking Plans, elevations and isometric
- Assembly (Fabrication) Drawings

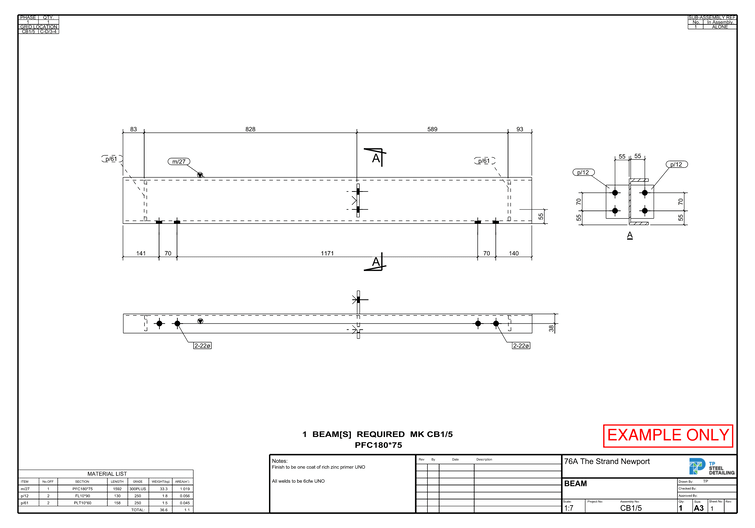

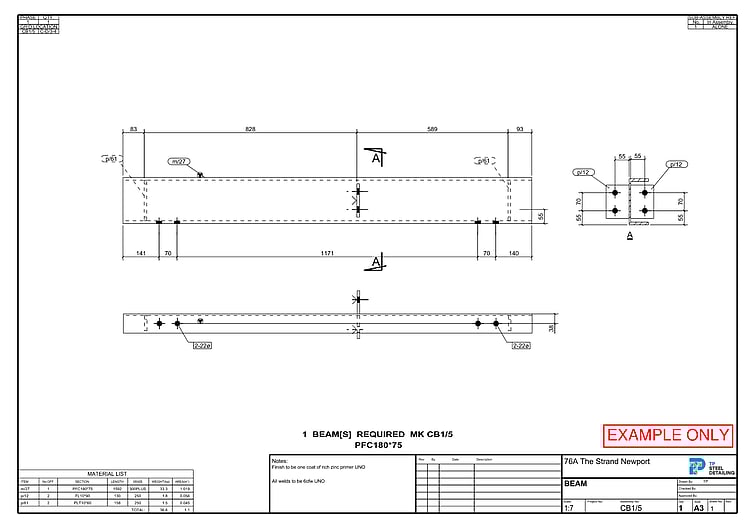

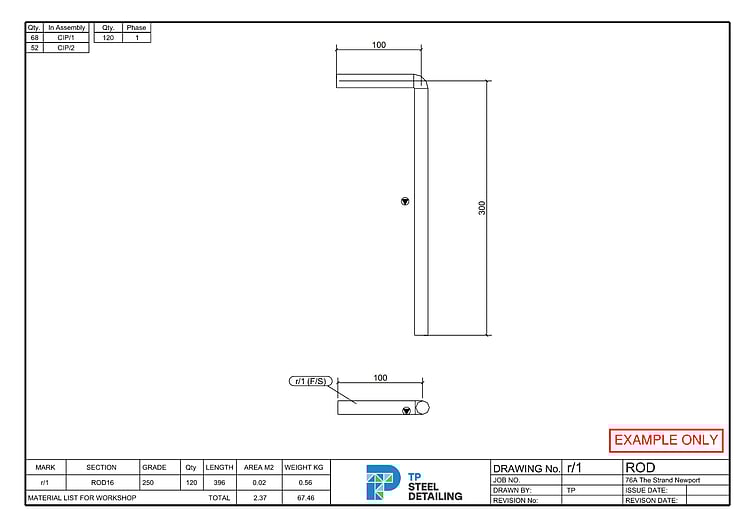

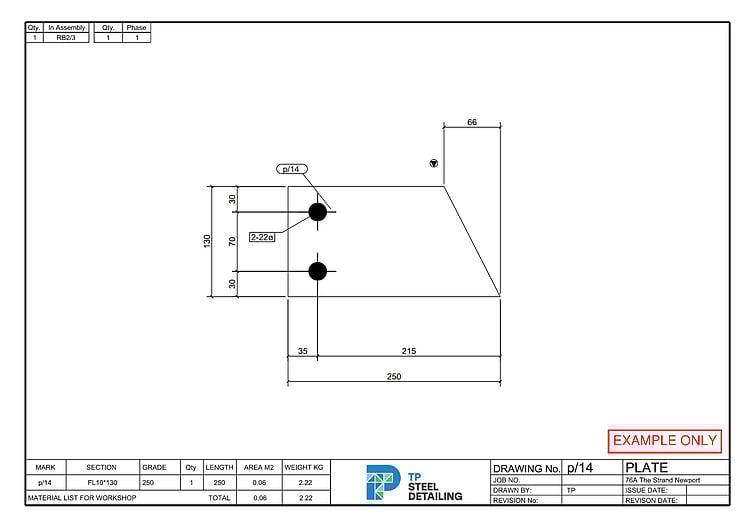

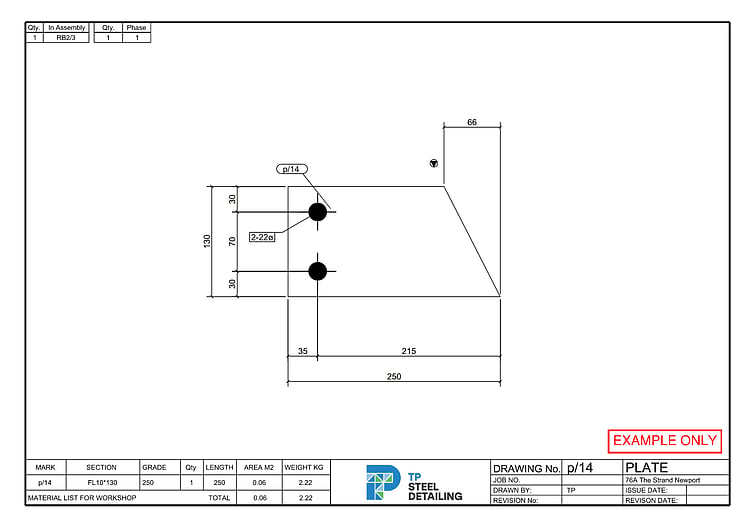

- Single Part Drawings (Shafts and Plates)

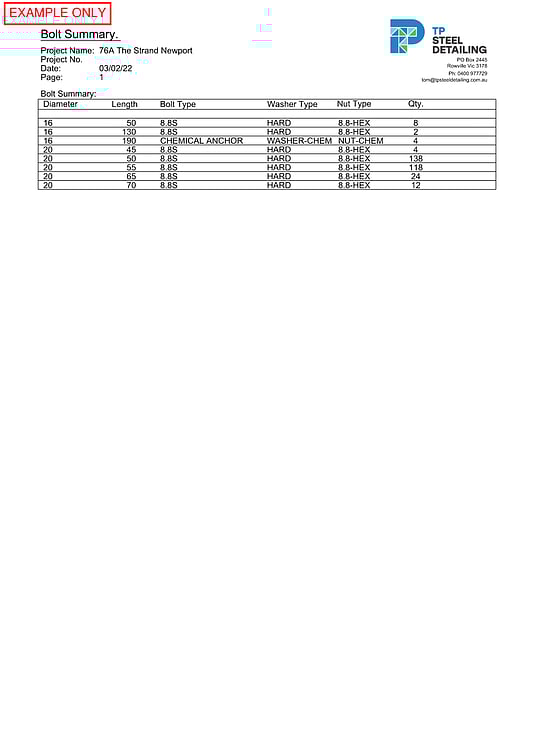

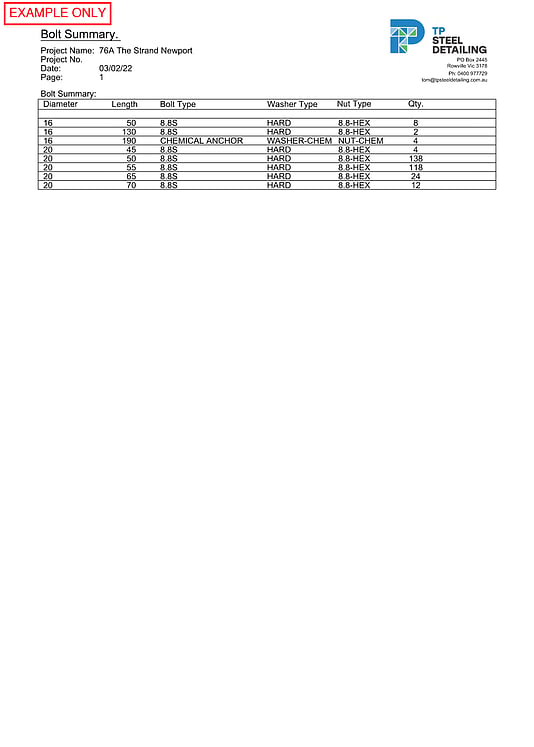

- Bolt List

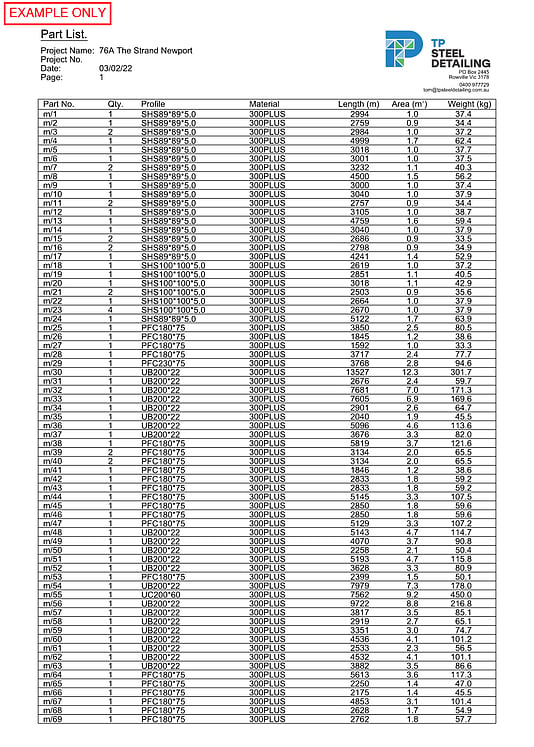

- Material Lists (for ordering)
- Site Measure
Back to shop drawings main page
Our Services
- Structural steel detailing
- Architectural steel detailing
- 3D modelling through Tekla Structures and Solidworks
- Erection drawings
- Shop Drawings
- Single part drawings (Plate and shaft drawings)
- Material and bolt lists
- NC and DXF files for CNC processing
- IFC model files
